Home » Communications » BaoFeng Antenna Upgrade

BaoFeng Antenna Upgrade

Baofeng antenna upgrade   Handheld HAM radios are great since they are small and portable, but you may find yourself needing to extend their range. A BaoFeng Antenna upgrade might be exactly what you need.

BaoFeng Antenna Upgrade

If you’ve read any of our HAM radio or Communication posts, then you know what fans we are of the BaoFeng handheld radios. They can cover the 2 Meter, 70 cm, MURS, GMRS, FRS, Weather, Marine bands and more.

The stock antenna is fine for most, especially if your looking right at the repeater tower (ok, I’m exaggerating, I’ve gotten some pretty good distance out of the stock antenna). There are those occasions though, where I wish I could pick up far off signals a little better, or just to get a little more reach to someone I’m trying to communicate with or to the repeater.

I finally decided to see if a simple antenna upgrade would rectify these issues.

The Antenna

I’ve had the ExpertPower 14.5″ DUAL BAND 144/430Mhz U/V SMA-F Antenna on my Amazon Wishlist for ages, and since it runs around $12, I can’t figure out why I hadn’t bought it up until now.


I decided to break open my piggy bank and use the $12, I had saved, so I could purchase the ExpertPower 14.5″ antenna.

Top: ExpertPower 14.5" Dual Band Antenna; Middle: ExpertPower 7.5" Dual Band Antenna; Bottom: Stock Baofeng 5" Antenna

Top: ExpertPower 14.5″ Dual Band Antenna; Middle: ExpertPower 7.5″ Dual Band Antenna; Bottom: Stock Baofeng 5″ Antenna

In comparison to the stock 5″ BaoFeng antenna, the ExpertPower 14.5″ Antenna is huge. This has to provide better signal than the tiny rubber ducky antenna.

The procedure to change antennas took 30 seconds, and required no tools. If you can twist a knob, you can change the antenna!

Did it Work?

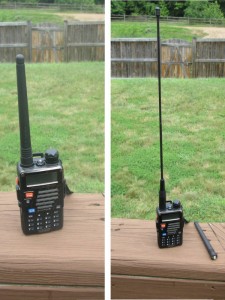

baofeng stock and expert power 14" Dual Band Antenna  I took my BaoFeng outside and tried some frequencies that I could pick up, but not very clearly. This Antenna allowed me to hear some of them as if I was standing right beside them. Now it didn’t fix all the frequencies, that I had trouble with, but there was a marked improvement on many of them.

I will note, and as you can see from the pictures, this antenna is long, so I might keep the rubber ducky on for general use (or I may use the ExpertPower 7.5″ DUAL BAND 144/430Mhz U/V SMA-F Antenna, that I ordered after my success with it’s big brother the 14.5″ version) and keep the ExpertPower 14.5″ Antenna, stowed in my backpack (or strapped to the side, if space is an issue). This way if I need to use comms, and I’m not having any luck, I can switch to the longer antenna as needed.

Was this Upgrade worth $12?

I think the ExpertPower 14.5″ DUAL BAND 144/430Mhz U/V SMA-F Antenna was worth every penny of that $12, just as I’m sure that the ExpertPower 7.5″ DUAL BAND 144/430Mhz U/V SMA-F Antenna will be worth the $6, that I paid for it.


My ExpertPower 7.5″ DUAL BAND 144/430Mhz U/V SMA-F Antenna arrived today, and even though it’s only 2″ longer than the stock BaoFeng 5″ antenna, you can tell that it is much better than the stock antenna. I haven’t used it to transmit yet, but if the transmitting benefits as much as the receiving, then the ExpertPower 7.5″ will be used instead of the stock antenna from now on!


Any enhancement that lets me increase my communication abilities may not be valued by money or costs alone, because if I had to use this radio in an emergency, it might make enough of a difference to save a life.

I am pleased with the performance boost, so yes, for $12, I’d buy this Antenna again!






  1. Doooh – A longer antenna will always improve reception. These antennas (if you want to call them that) are basically nothing more than dummy loads.

  2. WOW Ham Radio Store. Why don’t you take the time write an article on your experiences? I am sure you have more to share with the rest of us.

  3. I have read some sites that bash the BaoFeng radios… I am just gathering info on what would be the best fit for my needs. I have an ant related question. On the UHF radios I use in my job, if I need to get better reception (in deep woods where line of sight to a repeater is very limited), I would use “comm” wire (like speaker wire), twist it into the base of the antenna and toss the 50′ or so wire in a tree and talk away.. Could one do something similar with this hand held. (My plan is to have a “base” set with as good an antenna as the lightening around here will allow, as I can jump on to the tons of repeaters within the National Forest near my house – to get to my house from work, I will need to move through these woods – hence LOS issues)…

  4. What I use for a “Deep Woods” antenna is a “Roll-up” J-pole made from 300 ohm twin-lead TV antenna wire. The J-pole antenna needs no grounding and has a high angle of signal radiation. These are very easy to make or buy off of E-bay. It needs to be made for the VHF / UHF frequency you will be using. With a tennis ball attached to a 60 foot piece of heavy fishing line, you can haul it 30′ or so up a tree. I use 40′ of RG8x coaxial cable with an adapter to connect to my Baofeng HT.
    With this setup I can easily hit repeaters 30 to 40 miles away. For VHF / UHF you need coax with low loss, so stay away from the “mini” type of coax cables on lengths over 10 feet.

    Here is an example from you tube: http://www.youtube.com/watch?v=USdnLE0tWxw

  5. Robert "Bucky" Behrmann

    Rich, great ideas with great information.
